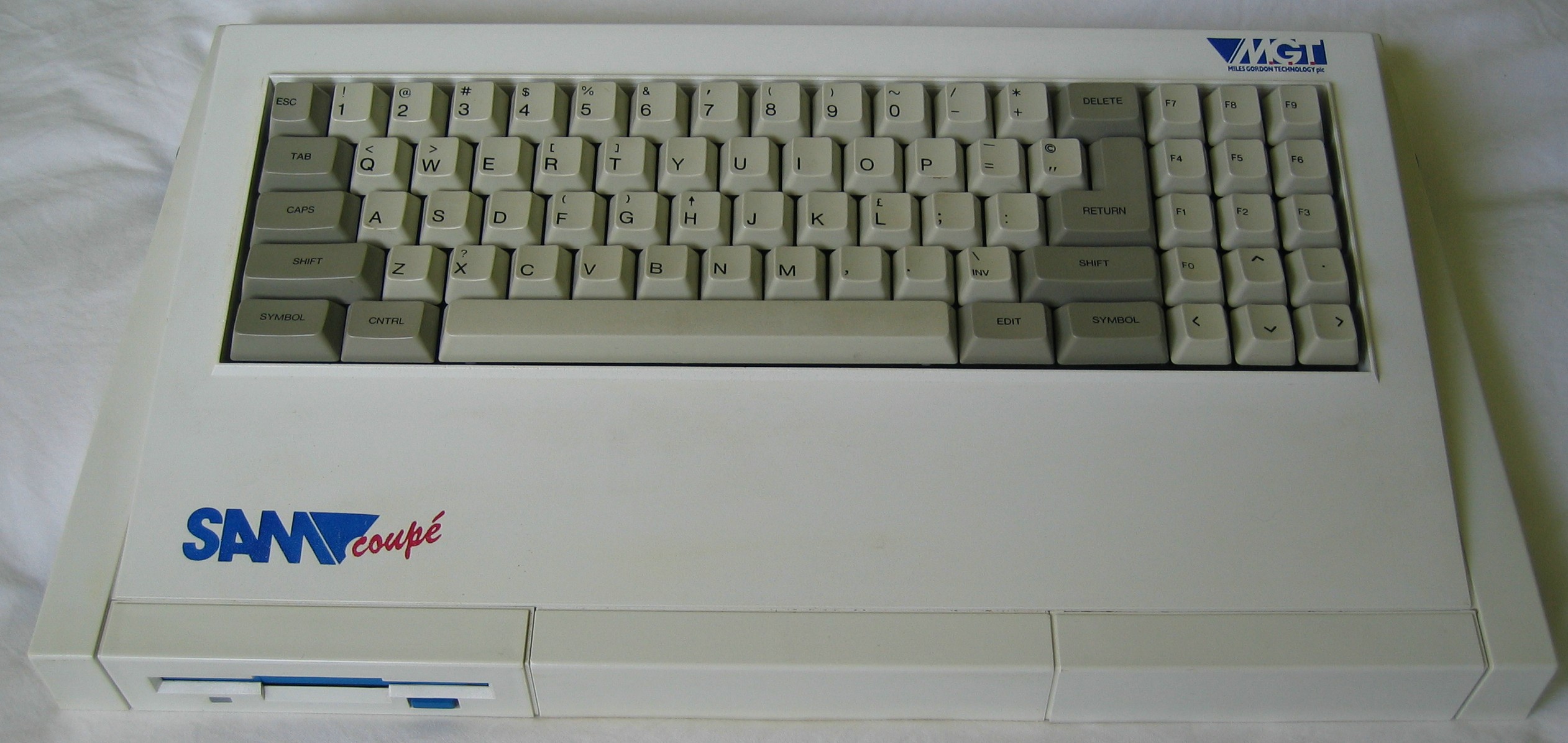

Sam Coupe

Características

Lenguajes  	SamBasic
Teclado  	Full-stroke Teclado, 72 Teclas, Reset button
CPU  	Zilog Z80B (fully compatible with i8080 and Z80)
Velocidad  	6MHz with screen off, 4.5 MHz with screen on
can be slowed down to emulate ZX Spectrum
Co-procesador  	Motorola MC 1377P Video Chip, Philips SAA1099 Sonidochip, ASIC handling Graficos
RAM  	256 kb or 512 kb onboard (depending models), and up to 4Mb with external addons (4.5 Mb total)
ROM  	32 kb (BASIC, BIOS & disk bootstrap)
Modos de Texto  	32 x 24, 85 x 24
Modo gráfico  	256 x 192, 512 x 192
Coloresc  	128 Colores
Sonido  	Philips SAA1099 Sonidochip, 6 channels stereo FM synthesis, 8 octaves, 2 noise generators, 2 envelope generators, DAC digital output , sample rate 15.6 kHz. Built-in MIDI interface (in, out, through)
Tamaño/Peso  	2.26 Kg
Puertos de entrada/salida  	RF video output (UHF, channel 36), RGB scart video output, serial / network socket, joystick connector (Atari standard), parallel interface, audio Puertos de entrada/salida, audio output
Almacenamiento interno  	one or two 3.5 ultraslim Citizen Double Density Drives (800 kb)
First models had no disk-drives
OS  	SamDOS, CP/M available
Fuente de alimentación  	External PSU (5v)
