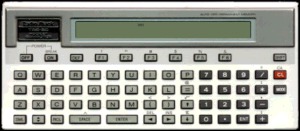

TRS-80 Pocket Computer PC-2

Características

Catalog Number:	26-3601
Introductory Precio:	$279.95
CPU:	LH5801 (8 Bit Processor) @ 1.3Mhz
ROM:	16K bytes of system ROM
RAM:	1850 bytes BASIC program and data RAM
600 bytes of fixed data Memoria
190 bytes reserve Memoria.
Teclado:	65 Teclas including 6 programmable function Teclas for each of 3 Reserve modes
18 softTeclas
10 pre-programmed command Teclas.
Video Dimensiones:	26-character alphanumeric Liquid Crystal Pantalla (LCD)
Automatic scrolling
Manual playback of lines longer than 26 characters.
Graficos:	7x5 dot matrix ASCII upper and lower case character set.
Graficos fully-addressable 7x156 dot matrix LCD Graficos permits Generacion of special characters.
Expansion:	Single plug-in slot accepts up to 16K of RAM or ROM or ROM/RAM combination
String Handling:	LEFT$. MID$. RIGHT$. LEN. VAL. CHR$ and STR$
Strings dimensionable to 80 characters in 2-dimension arrays.
Clock:	Real-time, quartz-controlled.
I/O:	All address and data lines. Alimentacion, timing. and control signals accessible via 60-pin connector
Alimentacion Requirements:	4 AA Pilas or AC adaptery.
Pilas Life: Approx. 75 hours with AA Alkaline Pilas.
What was it really?:	Sharp PC-1500
