Sanyo

Características

Lenguajes  	None
Teclado  	Full stroke 83 with 17 function Teclas and numeric keypad
CPU  	Z80-A
Velocidad  	4 MHz
RAM  	64 KB
Modos de Texto  	80 chars x 25 lines
Modo gráfico  	None
Coloresc  	Monochrome Pantalla
Sonido  	Beeper
Tamaño/Peso  	41 (W) x 33.7 (D) x 37 (H) cm
Puertos de entrada/salida  	Parallel Centronics, Serial RS-232
Almacenamiento interno  	320 KB 5.25 floppy discs. MBC-1100 : 1 disk drive. MBC-1150 : 2 disk drives
OS  	CP/M
Fuente de alimentación  	Built-in Fuente de alimentación unit
Precio  	£1882 (1150) (U.K., 1983)

Características

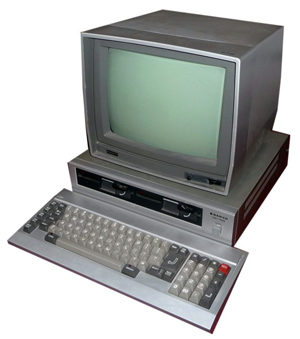

MANUFACTURER  	Sanyo
TYPE  	Home Computer
ORIGIN  	Japan
YEAR  	1982
END OF PRODUCTION  	1988
BUILT IN LANGUAGE  	Sanyo Basic
KEYBOARD  	QWERTY full-stroke keyboard with numeric keypad
CPU  	Intel 8088
SPEED  	3.58 MHz
CO-PROCESSOR  	Optional Intel 8087 math coprocessor
RAM  	128 KB or 256 KB depending models, includes 16 KB V-RAM
VRAM  	48 KB(includes 16 KB of main RAM)
ROM  	8 KB (IPL/CG)
TEXT MODES  	40 x 25 / 80 x 25
GRAPHIC MODES  	144 x 200 / 576 x 200 / 640 x 400 (or 640 x 200 ?)
COLOrsc  	8
SOUND  	Buzzer, can only generate a single buzztone sound (fixed duration)
SIZE / WEIGHT  	main unit : 380(W)x112(H)x360(D) mm
keyboard : 442(W)x45(H)x174(D) mm
I/O PORTS  	Centronics printer port, RS-232c (optional), RGB (DIN-8) & composite vide outputs, joystick/paddle (optional), keyboard (DIN-5), external ? (optional)
BUILT IN MEDIA  	MBC-550 : 1 x 51/4 disk-drive (160k)
MBC-555 : 2 x 51/4 disk-drive (160k)
MBC-555-2 : 2 x 51/4 disk-drive (360k)
OS  	MS-DOS 2.11, optional: CP/M 86 & Concurrent CP/M-86
POWER SUPPLY  	Built-in PSU
PERIPHERALS  	128 KB RAM expansion
PRICE  	MBC-550: £800 - MBC-555 £1150 (U.K., 1984)
MBC-555-2 : 14200 FF (France, january 1986)
MBC-55 : 178000 yens (Japan, 83)
MBC-555-3 : 16590 FF (France, january 1986)

Curiosidades

The Sanyo MBC-550 was the first of the legitimate clones of the IBM Personal Computer.

Características

Lenguajes Basic
CPU Zilog Z80 A
Velocidad 4 MHz
RAM 16 KB
VRAM 6 KB
ROM 28 KB
Modos de Texto 16 x 16 / 32 x 16
Modo gráfico 64 x 48 (8 Colores) / 192 x 128 (4 Colores) / 256 x 192 (4 Colores)
Coloresc 8
Sonido optional
Puertos de entrada/salida Tape, Centronics, RGB
Precio 1690 FF (Francia  , january 1986)
